ULTIMATE 16
Series
SWIM SPA
The Next Level of Swimming at Home
"
Small Above-Ground Swimming Pool
with Smooth, Wide and Powerful Current for All-Ages Swimming "
The Ultimate 16 counter-current swim spa features advanced dual-propeller technology with adjustable speed levels, making swimming easier, more balanced, and more enjoyable. The well-controlled current provides excellent stability and comfort for swimmers of all skill levels. Designed for the whole family, it is suitable for everyone from children to adults. It is an ideal solution for creating a home swimming space that can be used every day. As a compact swim spa, it is easy to maintain and requires significantly fewer water-treatment chemicals than a traditional concrete swimming pool.
ULTIMATE 16 Series Swim Spa
- Price: 1,085,000 THB (VAT included)
- Size: 540 × 240 × 148 cm
- Water Level: 115 cm
- Water Capacity: 11,200 liters
- Dry Weight: 1,350 kg
- Filled Weight: 12,550 kg
Key Features
- ✔ RiverWave™ Dual Propeller System (6,500 W) for natural swimming
- ✔ 16 adjustable speed levels, ideal for all ages and skill levels
- ✔ 14 massage jets powered by hydrotherapy pump (1,500 W)
- ✔ BALBOA® (USA) heater – adjustable up to 40°C for year-round use
- ✔ Continuous filtration system with skimmer & separate circulation pump
- ✔ Ozonator water treatment for cleaner, healthier water
- ✔ 8-color LED lighting for a relaxing night spa experience
Included Accessories
- Swim spa cover
- 4-step entry steps
- 4 filter cartridges
- Water treatment chemicals (1-year supply)
MAIN FEATURES
"Advanced Design for Swimming & Relaxation"
Every element of the Ultimate 16 Series swim spa is thoughtfully engineered to deliver exceptional swimming performance and complete relaxation, from ergonomic massage seating and precise temperature control to ambient LED lighting.
Counter Current System
RiverWave™ Dual Propeller System
The RiverWave™ counter-current system is equipped with two large-diameter propellers (9.44 inches each) designed to generate a balanced and consistent water flow. This creates a wide, stable current that covers almost the entire swimming area of the spa. Unlike traditional jet-based systems, this propeller-driven current does not rely on air injection to increase pressure. Instead, it uses the power of a high-capacity 6,500-watt pump to move a large volume of water, delivering stronger resistance through direct water flow for a smoother and more natural swimming experience.
16 Adjustable Speed Levels
Swim, Walk, Run & Physical Therapy
The RiverWave™ counter-current system allows users to precisely adjust flow intensity to match individual needs—from gentle current for low-impact water exercise, rehabilitation, and injury recovery, to walking, running, and warm-up sessions before swimming. Higher resistance levels support more advanced training, allowing users to select the ideal current strength based on their skill level and swimming ability.
Different swimming styles require different current speeds. With adjustable resistance, the Ultimate 16 Swim Spa supports all major swimming styles, including breaststroke, freestyle, backstroke, and butterfly. Precise speed control helps swimmers maintain proper rhythm, stroke timing, and comfortable breathing throughout each session.
The counter-current system operates in continuous 30-minute cycles with an automatic safety shut-off, creating balanced workout sessions and preventing accidental overuse. With an overall width of 240 cm, the Ultimate 16 provides a more spacious swimming environment than many other swim spas, making it suitable for daily exercise for every family member—from children and active adults to seniors and retirees.
135 cm Wide Swim Outlet
Wide and Balanced Water Flow
The RiverWave™ simulated river current system features an extra-wide swim outlet designed to organize and guide the water flow into a smooth, even current. This design helps reduce turbulence and swirling within the flow, creating a well-balanced and stable swimming current that feels natural and controlled.
With a swim outlet measuring 135 cm in width and 18 cm in height, the system releases a dense, high-volume sheet of water that minimizes pressure compression compared to narrow outlet systems. The wider flow reduces water impact around the nose and mouth, allowing swimmers to maintain comfortable breathing and better control of rhythm and body position throughout the swim.
Relaxation Seating Area
with Hydro Massage Jets
The Ultimate 16 Counter-Current Swim Spa is equipped with a dedicated relaxation seating area featuring two seats located at the rear of the spa, opposite the current-generation system. A total of 14 hydro massage jets are strategically installed to provide relaxing massage therapy for the mid-back and lower back areas. Both seats are designed to face each other, creating a comfortable space for conversation, social interaction, and shared moments of relaxation with loved ones and family members.
The two rear seats are designed with a water depth that comfortably reaches chest level, allowing users to breathe easily and relax fully. This seating area is ideal for resting after counter-current swimming or various forms of aquatic exercise. The massage system combines two types of jets to deliver a varied and effective massage experience: directional jets for targeted muscle relief and rotating jets that provide a kneading massage effect. In addition, three jet sizes—2 inches, 3 inches, and 5 inches in diameter—are carefully positioned to deliver different pressure levels, reaching various muscle depths to help relieve fatigue and promote deep relaxation efficiently.
Built-In Heating System
Always Ready to Swim
The Ultimate 16 Counter-Current Swim Spa is equipped with a built-in water heating system that allows the water temperature to be set up to 40°C. The system is designed to maintain a stable water temperature continuously for 24 hours, ensuring the swim spa is always ready to meet each user’s specific needs—every day and at any time.
For example, for customers who enjoy swimming, Q&G recommends setting the water temperature to no higher than 30°C. Whether swimming in the morning or at night, the water temperature will remain consistently at 30°C, providing a comfortable and enjoyable swimming experience at all times.
The heating system is also highly beneficial for aquatic exercise, physical recovery, and hydrotherapy. Setting the water temperature within the range of 32–36°C helps relax muscles and effectively supports rehabilitation and recovery processes.
The swim spa is equipped with a 3,000-watt heater, which may appear smaller compared to heating systems used in conventional swimming pools. However, the system is intelligently engineered to maintain the water temperature in advance, rather than rapidly heating the water during use with a high-powered heater. When compared over long-term operation, this design significantly helps reduce electricity consumption and delivers excellent energy efficiency for water heating.

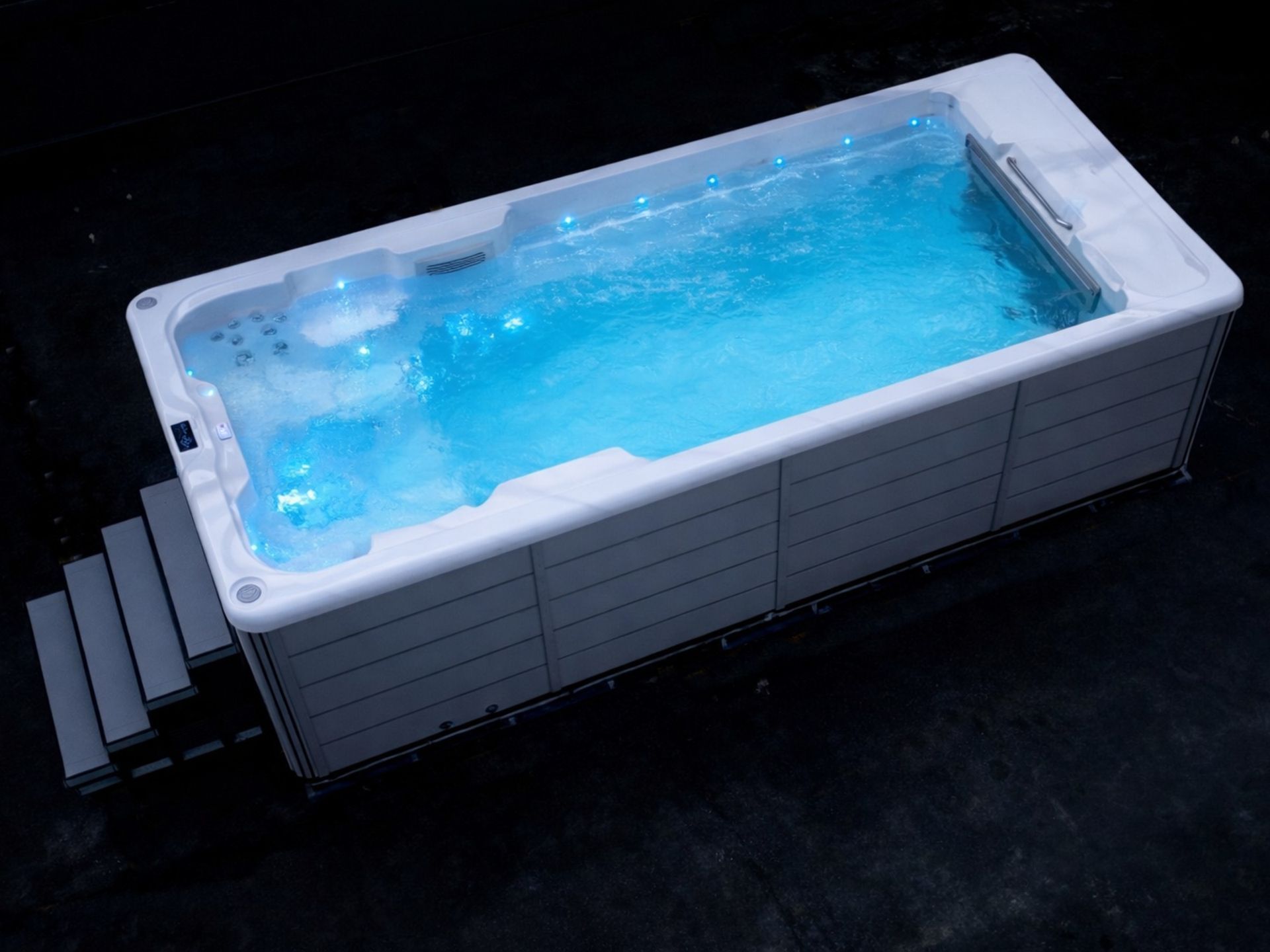

8-Color LED Lighting System
Night-Time Ambience
The LED lighting system is designed to create ambiance, improve visibility while swimming, and enhance overall pool usability, while also promoting relaxation during night-time use. It features 8 selectable LED colors, including red, green, blue, yellow, sea blue, light green, purple, and white, along with 6 lighting modes. Users can choose their preferred fixed color for swimming or select from various color-changing modes with adjustable effects—fast, slow, or gentle transitions—while relaxing in the rear seating area of the swim spa.
The LED system includes large underwater lights combined with discreet mini LED lights arranged along the upper waterline. The lighting system operates for up to 4 hours and is equipped with an automatic shut-off function, creating the perfect atmosphere for outdoor relaxation and night-time enjoyment.
STRUCTURE & EQUIPMENT
"Built for Long-Term Reliability"
The Ultimate 16 counter-current swim spa is designed and manufactured with a strong focus on durability and long-term performance. High-quality materials and carefully selected components are used throughout the structure to reduce maintenance requirements and minimize the need for repairs. This thoughtful construction ensures excellent value and reliability, making the Ultimate 16 an ideal solution for everyday swimming and relaxation in outdoor residential spaces.
Fiberglass Reinforced Swim Spa Structure
Multi-layer fiberglass reinforcement is a key structural element in strengthening the swim spa shell, providing increased thickness, rigidity, and resistance to cracking or water leakage. This reinforced structure also helps prevent shell deformation, ensuring long-term durability and extending the overall service life of the swim spa.
Galvanized Steel Frame
The Ultimate 16 counter-current swim spa is designed with a galvanized steel frame that provides high structural strength and stable support for the entire swim spa. This reinforced frame helps evenly distribute the overall weight of the swim spa, ensuring balance and stability during use. In addition, the galvanized steel construction offers excellent corrosion resistance, making it ideal for long-term outdoor installation.
High Leak-Resistant Plumbing System
The water piping system is meticulously installed using carefully selected materials and connection techniques designed for long service life. Special bonding adhesive is used to resist pool chemicals and heated water temperatures. The plumbing layout is also engineered to minimize pipe movement, further reducing the risk of leakage and ensuring reliable, long-term performance.
LUCITE® Acrylic Surface – USA
The swim spa surface is made from high-quality acrylic material imported from the United States, widely trusted within the counter-current swim spa industry. It features a smooth, marble-like finish with a non-porous surface, and is enhanced with Microban® technology to help inhibit bacteria, mold, and stains. This makes cleaning easier and helps reduce the need for chemical usage when compared to traditional concrete swimming pools.
BALBOA® Control System - USA
The BALBOA® control board manages the operation of the water filtration system, water circulation, ozone sanitation system, rear massage jet system, and LED lighting. It is designed with built-in safety protection features, including circuit protection, and has been trusted in the industry for decades for its reliability and proven performance.

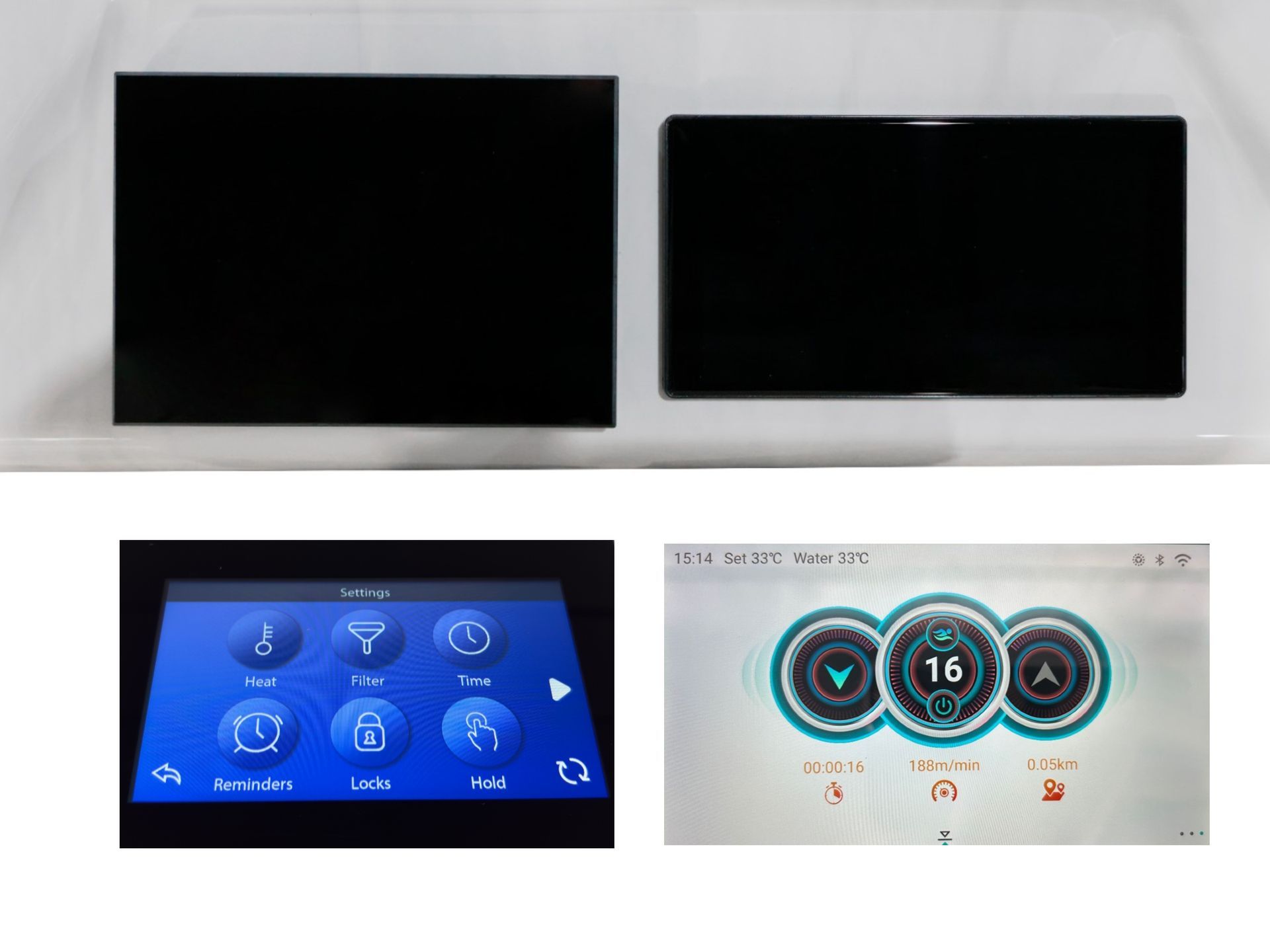

User-Friendly Dual Touchscreens
The Ultimate 16 counter-current swim spa is equipped with two touchscreen control panels, separating swimming control from the main spa functions. One dedicated panel is used to control the counter-current system, allowing users to precisely adjust the current strength according to their preferences. The second BALBOA® control panel manages the remaining systems, including water filtration, heating, ozone sanitation, massage functions, and LED lighting.
PS Wood-Plastic Composite Surround Finish
The Ultimate 16 counter-current swim spa features PS wood-plastic composite panels around the perimeter, protecting the internal structure from dust, rain, sunlight, and pests. Finished in a white oak wood-grain tone, the material is durable, easy to maintain, and ideal for outdoor use.
Fiberglass Base
The fiberglass base protects the swim spa from ground moisture, rain, and dust, while forming a sealed barrier that prevents pests from entering and damaging internal systems. This durable foundation helps extend the swim spa’s overall lifespan and ensures long-term reliability.
Slip-Resistant Floor Surface
The interior floor of the counter-current swim spa is designed with a raised, textured surface featuring small grip patterns throughout the pool to help reduce the risk of slipping during use. This floor design enhances stability and safety while swimming, walking, and performing aquatic exercises, as well as when entering or exiting the swim spa, including the internal steps and the walkway leading to the rear seating area.
Stainless Steel Jet Faces
All massage jets are finished with stainless steel faces, offering improved durability, corrosion resistance, and a premium appearance while maintaining consistent water performance.
Dual Internal Step Design
Internal steps are designed on two sides of the swim spa, allowing flexible entry and exit depending on installation layout. The steps can also be used as seating for resting or transition between activities.
External 4-Step Access Stairs
A four-step external staircase provides safe and comfortable access to the swim spa. The design ensures stable footing and ease of use for all family members.
Ozone Sanitation System
The integrated ozone system helps maintain clean and clear water by reducing bacteria and contaminants. This system lowers the need for chemical sanitizers while supporting healthier water quality.
Skimmer Filtration & Water Circulation System
Water is continuously filtered through a skimmer system using four high-quality cartridge filters. This design improves debris removal, enhances water clarity, and supports efficient circulation throughout the swim spa.
Air Control Valves
Air valves allow users to adjust airflow for the massage system. By controlling air intake, users can customize massage intensity to match personal comfort and relaxation needs.
Separated Pump System
The Ultimate 16 Swim Spa uses dedicated pumps for specific functions to ensure efficient and reliable operation. A 1 HP circulation pump manages water circulation, heating, and ozone sanitation, while a separate 2 HP hydrotherapy pump powers the massage system—allowing each function to perform optimally without interference.
Insulated Swim Spa Cover
Water Protection & Heat Retention
The Ultimate 16 Swim Spa is equipped with a 4–6 inch insulated cover designed specifically for the larger water volume of a swim spa. By limiting sunlight exposure and blocking debris such as dust, leaves, and insects, the cover helps prevent algae growth that can lead to green or cloudy water. Reduced light penetration also supports more stable water chemistry and lowers the need for corrective chemicals.
High-density insulation helps maintain consistent water temperature, reducing heat loss and minimizing heater cycling to improve energy efficiency. The tapered design allows rainwater to drain away easily, while the durable outer layer protects against UV exposure, weather, and environmental contamination—keeping the swim spa cleaner, clearer, and ready to use. With normal care, the cover’s typical service life is 3–5 years.
WHY SWIM SPA – ULTIMATE 16 SERIES
Building a traditional concrete swimming pool that supports continuous swimming typically requires a length of 25–50 meters, along with significant space, construction cost, and ongoing maintenance. While effective, such pools are often impractical for residential homes.
Mid-size concrete pools in the 12–15 meter range reduce space requirements but require frequent turning, which interrupts swimming rhythm and limits training effectiveness. The Ultimate 16 Swim Spa eliminates this limitation with a smooth, continuous counter-current system that allows uninterrupted swimming in a compact footprint.
Compared to a concrete pool, the Ultimate 16 Series requires less space, uses fewer chemicals, consumes less energy, and is easier to maintain. It provides a controlled, ready-to-use environment for swimming, exercise, and recovery throughout the year.
